Thread link gear flowmeter

•

ZW - LA seriesThread link gear flowmeterIs one of the volumetric flowmeter, used for precise measure…

ZW - LA seriesThread link gear flowmeterIs one of the volumetric flowmeter, used for precise measurement for continuous and discontinuous flow or instantaneous flow of liquid in the pipe.It is especially suitable for heavy oil, polyvinyl alcohol, resin and other high viscosity medium flow measurement.

Second, the working principle and structure:

ZW series - LA thread link gear flowmeter cavity in the body has a pair of meshing gears as the rotor to each other, the two gear with cavity can constitute a fixed volume, respectively, referred to as the standard volume and flow rate is calculated to a flow within a certain time the number of standard volume measured.Two gear precision with closed in a strong cavity in the body of work, measured liquid drive gear rotating, the non-contact detector gear rotation.Gear gap formed between the measuring chamber.Each tooth after detector, detector to produce a pulse.Of the output pulse signal by the instrument volume/pulse (Vm) conversion and processing, display reading to meet the requirements of users.This flowmeter especially suitable for precision, high pressure, high viscosity in the environment.

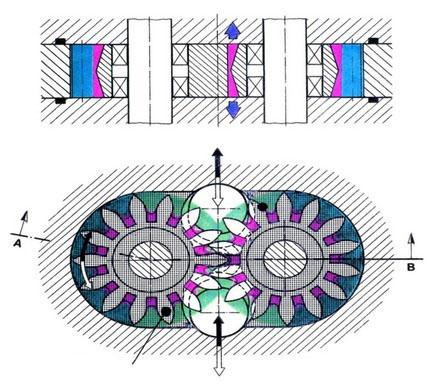

The principle diagram of the structure

Applications:

ZW series - LA thread link gear flowmeter is widely used in petroleum, petrochemical, natural gas, chemical industry, papermaking, automobile, food and other industries, also is used to measure the tiny flow measurement of small diameter.

Four, the main features:

1, the flow measurement has nothing to do with the flow of the fluid;

2, the greater the viscosity of the medium, from gear and measuring the less empty clearance leakage of the leak out, therefore the greater the viscosity of the measured medium, the more you small leakage error, good for measuring the;

3, high measuring accuracy, suitable for high viscosity medium flow and measure, but is not suitable for fluid containing solid particles, need to add the filter;With a gas, such as medium can also cause measurement error;

4, small volume, light weight, small vibration noise when running, can measure the viscosity is as high as 10000 pa. S fluid.Measurement accuracy of 0.5, 0.2 on the Richter scale are unlikely.Wide measuring range zui up to 50:1;

5, have a general-purpose, high pressure, food, etc, are suitable for all kinds of cleaning liquid of small flow measurement.

Five, the technical parameters:

（a） Instrument parameters

（The second） Using the environment
The temperature- 20℃ ~+ 50℃ humidity5%~95% Air pressure85kpa~106kpa。
（three） Electrical indicators
1、 Power supply: the power supply3.6VLithium-ion batteries, power consumption <1mw;External power12VDC~24VDC,Power consumption <2w；
2.、 Output: pulse, current,RS485Mudbus 、Hartagreement--And so on;
Six, appearance size:

Seven, installation method:
Note: the front without any direction, straight pipe.If there is any impurities, need to add filter.
Eight, Selection of code:

Nine, design selection and order notes:

1, the name of the flowmeter, models.Specification, material, etc.

2, medium temperature (℃), scope of work pressure (Mpa), flow (m3 / h).

Name 3, medium viscosity values or media.

4, any special requirements (such as explosion-proof, etc.).

5, you need to learn more about the products, please call for information.

After-sales service commitment:

1, our company sold by flow meter series products within twelve months appear quality problem, is responsible for free maintenance.

2, the warranty period, any quality problems such as the products of our company, my company is responsible for free repair or replacement.

3, the warranty period, such as user improper use, damaged products, my company is responsible for the maintenance, charge damage parts cost.

4, after the warranty period appear quality problem, my company is responsible for the maintenance, charge damage parts cost.

5, such as user need to my company site services, to users in the province I company service personnel to reach the site within 12 hours, fujian association of foreign languages and user reach the site within 48 hours.
