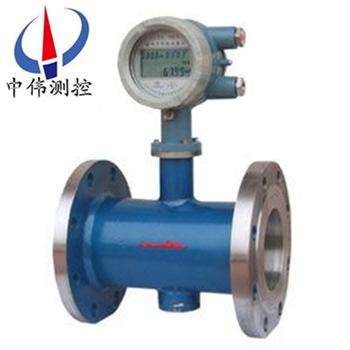

Straight-through magnetoelectric meter
ZW series - LUCHStraight-through magnetoelectric meterFlow meter is a kind of speed type, is a colle…
Description：
Products overview:
ZW series - LUCHStraight-through magnetoelectric meterFlow meter is a kind of speed type, is a collection of signal detection and intelligent microelectronics technology in the integration of high-tech mechanical and electrical products.Same time vortex flowmeter and electromagnetic flowmeter and the advantages of two kinds of instrument, have no moving parts, measuring stability.Flow meter is calculated by the sensor and the meter of two parts, as well as make a one-piece, can also be split type.And can be used to place no power supply is used.Can measure the 0-100 ℃ conductive liquid, including water, industrial water, civil water), strong acid, alkali, salt and other corrosive liquid, pulp, mud, FeiWuShui and volume flow of solid liquid two phase suspension.The products are widely used in petroleum, chemical, metallurgical, textile, food, pharmaceutical, paper making industries and environmental protection, municipal administration, water conservancy construction and other fields.
Second, the working principle:
ZW series - LUCH straight-through magnetoelectric meter was developed according to the principle of Faraday electromagnetic induction.In sensor placement within a flow direction of medium and the measured vertical body induction, its downstream magnetic steel to produce strong magnetic field, magnetic field lines through the pipeline.When the medium flows through the induction body occurs, alternately on each side of its downstream separation releases two columns of the rules of vortex, the spiral cutting magnetic induction electromotive force that is of the same frequency, using electrode electrical signal detection in a certain velocity medium within the scope of the signal is proportional to the pipe flow.
Three, structural components:
ZW series - LUCH straight-through magnetoelectric meter is composed of magnetoelectric flow transmitter and display two magnetoelectric flow.
Four, the main features:
1 good corrosion resistance, simple structure, sensor is made of stainless steel materials, resistant to strong acid, strong alkali, no mechanical moving parts inside, not easy jam, not stuck, and long service life.
2 USES the function is all ready, display, not only can display the date, the instantaneous flow and cumulative flow, and can record, store daily traffic every day, in case retrieval, the storage days flow capacity up to 2600 days, can query any date of 7 years, traffic.
3 stable performance: magnetoelectric induction of traffic signal by single chip microcomputer circuit on the operation, control, processing technology, can identify the flow and vibration data, eliminate all interference signals, with good anti-seismic, anti-interference ability, resistant to vibration 1 g (0.2 g) piezoelectric vibration or less resistant, making measuring performance is stable and reliable.
4 minimum flow rate is low, range than the big, measurement accuracy, flow meter measuring velocity range of 0.2 ~ 7.5 m/s.Display, single-chip microcomputer has eight period of nonlinear flow error correction function and output pulse signal remote transmission function.
Five, the conditions of use:
1, the ambient temperature: - 30 ℃, 60 ℃
2, relative humidity: 85% RH or less
3, applicable medium: water, oily wastewater, acid alkali liquor
4, medium temperature: - 20 ℃ -- 120 ℃
Six, the technical parameters:
1, measure the diameter: DN15-12;
2, work stress: 1-42 mpa;
3, the measuring accuracy: + / - 1%;
4, signal output: 4-20 ma;Pulse output.
5, pulse output: 0-1000 hz;
6, communication interface, RS485 interface;
7, power supply: DC24V.
Seven, disassembly and installation requirements:
1, remove and install the magnetoelectric flow timing to should take put down gently, excessive force may cause the sensor failures or measurement inaccurate;
2, flowmeter for liquid flow direction arrow direction, magnetoelectric meter components shall be installed in strict accordance with the requirements of the order and direction;
Installation requirements:
1, the flowmeter can be horizontal, vertical installation, vertical fluid when installation must flow from bottom to top.Liquid should be full of pipes, can not have bubbles.
2, liquid flow direction when installation should be consistent with instructions flow direction arrow on the inner side of outer casing of flow meter, flowmeter upstream side length should be at least 20 times the diameter of straight pipe, the downstream end shall be not less than five times the diameter of straight pipe.
3, flow meter should be from the electromagnetic field, such as can't be avoided, the necessary shielding measures should be taken.
4, in order to does not affect the normal liquid delivery, maintenance should be in the installation of flow meters place, install bypass pipe.
5, flowmeter open when installation, please use waterproof measures.
6, explosion-proof type flowmeter, must disassembling instrument shell in a safe place.
Eight, the parameter list:
Nominal diameter DN（㎜） | Nominal pressure PN（MPa） | Flow range Q（m3/h） | Instrument coefficient K（kn/m3) | Great value for （m3) | Small values （m3) | The instantaneous flow values （m3/h） |
15 | 1~42 | 0.2~3 | 640 | 9999.9999 | 0.0001 | 0.001 |
20 | 1~42 | 0.3~5 | 320 | |||
25 | 1~42 | 0.5~10 | 160 | |||
32 | 1~42 | 0.75~15 | ||||
40 | 1~42 | 1~20 | 64 | 99999.999 | 0.001 | 0.01 |
50 | 1~42 | 1.5~30 | ||||
65 | 1~42 | 3.5~70 | 16 | |||
80 | 1~42 | 6~120 | ||||
100 | 1~26 | 9~180 | 6.4 | 999999.99 | 0.01 | 0.1 |
125 | 1~26 | 12.5~250 | ||||
150 | 1~26 | 20~400 | ||||
200 | 1~4 | 35~700 | 2.56 | 9999999.9 | 0.1 | 1 |
250 | 1~4 | 60~1200 | 1.28 | |||
300 | 1~4 | 100~2000 | 0.64 |
Nine, selection of code:
The basic model | 1 | 2 | 3 | 4 | 5 | instructions |
Nominal diameter | Nominal pressure | The material | Far eastone way | Working temperature | ||
ZW-LUCH | Magnetoelectric meter wei measurement and control of the () | |||||
15～300mm | Nominal diameter 15 ~ 300 mm | |||||
1.6 ~ 42 | Nominal pressure 1.6 ~ 42 mpa | |||||
C4 | 304 stainless steel | |||||
C6 | 316 stainless steel | |||||
F | Pulse, the equivalent output | |||||
I | 4-20 ma output current | |||||
R | RS485、Mudbus | |||||
H | Hart protocol | |||||
A | Medium temperature is 80 ℃ or less | |||||
B | Medium temperature 80 ℃ or higher |
Ten, design selection and ordering information:
1, indicate the diameter of the magnetoelectric meter need, connecting method, flow range, pressure level, with length and the connection can be made according to user requirements.
2, if you need to remote the separation of transmission distance shall be indicated when ordering.
After-sales service commitment:
1, my company's products sold by flowmeter appeared quality problem within 12 months, responsible for free maintenance.
2, the warranty period, any quality problems such as the products of our company, my company is responsible for free repair or replacement.
3, the warranty period, such as user improper use, damaged products, my company is responsible for the maintenance, charge damage parts cost.
4, after the warranty period appear quality problem, my company is responsible for the maintenance, charge damage parts cost.
5, such as user need to my company site services, to users in the province I company service personnel to reach the site within 12 hours, fujian association of foreign languages and user reach the site within 48 hours.
