PT100 thermal resistance

•

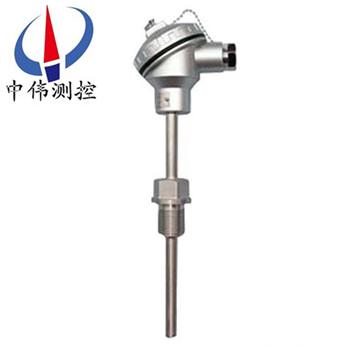

WZP series PT100 thermal resistance As the temperature measurement sensor, usually with temperature …

Productoverview:

WZP series PT100 thermal resistance As the temperature measurement sensor, usually with temperature transmitter, controller and display instrument and other facilities, consisting of the process control system for direct measurement or control of the production process in a variety of -200 -500 DEG C range of liquid, steam and gas solids and surface temperature. Thermal resistance is the use of the material when the temperature changes with its own resistance characteristics change to measure the temperature. When the measured temperature gradient exists in the medium, the measured temperature is the average temperature of the temperature sensing element to the range of medium. Although the shape differences between the various thermal resistance is large, but their basic structure but broadly similar, generally have a temperature sensing element, insulating sleeve, protective tube, the main part and the junction box etc..

Two, work principle:

WZP series of <strong> PT100 thermal resistance</strong> is the use of the material when the temperature changes, the resistance also changes with the characteristics to measure the temperature. When the resistance changes, the instrument will display relevant resistance temperature.

Three, technical parameters:

Product executive standard

IEC584

IEC1515

GB/T16839-1997

JB/T5582-91

Insulation resistance at room temperature

Heat resistance at ambient temperature is 15 to 35 DEG C, relative humidity is less than 80%, the test voltage is 10 - 100V (DC) >100M. The insulation resistance between electrode and outer tube.

Four, measurement of temperature and tolerance:

Note: t is the sense of temperature measured temperature component values (c)
Five, Selection table:

Six, Design selection and ordering information:
1, model;
2, division no.;
3, precision grade;
4, fixed form;
5, the length or depth of insertion .
Customer service service commitment:
1, my company sold Zhongwei Thermal resistance series The product within twelve months of quality problems, responsible for free maintenance.
2, the warranty period if the products of our company have any quality problems, our company is responsible for free repair or replacement.
3, the warranty period if the user use undeserved, cause damage to the product, our company is responsible for the maintenance, collect the damaged parts cost.
4, after the warranty period of product quality problems, our company is responsible for the maintenance, collect the damaged parts cost.
5, if the user needs to our service, our company in the province of the user service personnel arrived at the scene within 12 hours, 48 hours outside users arrive at the scene.
