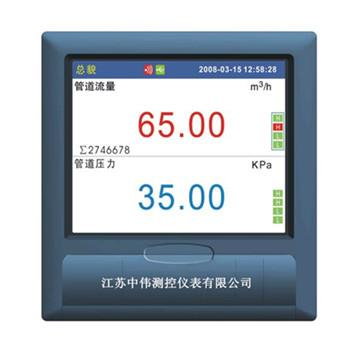

Color paperless recorder

•

The color paperless recorder is a 12-channel universal input color screen paperless recorder, which …

Products overview:
ZWRC6000 seriesColor paperless recorderUsing high brightness, wide viewing angles of 5.6 inch TFT LCD screen, display clear;Using super capacity NAND FLASH as historical data storage medium, really realize the paperless recorder powerful record;Simple buttons and knobs combination make the operation more flexible, conform to the industrial personnel's operation habit.And CF card is adopted as an external storage medium, but will need to save the data through the CF card transfer to permanently save or print from the computer or other equipment.
Second, the applications:
ZWRC6000 seriesColor paperless recorder is suitable for metallurgy, petroleum, chemical industry, building materials, paper making, food, medicine, heat treatment and water treatment and other industrial field.
Three, the main features:
1, LCD display, CCFL backlight, clear images, colorful, wide viewing angles.
2, screen brightness can be adjusted freely;
3, high-speed, high-performance 32-bit ARM microprocessor, picture response time is less than 0.5 seconds, can achieve no.12 signal detection at the same time, record, display and alarm.
4, use new large-scale integrated electronics, zui international plant components design.
5, and 32 high capacity FLASH chip storage of historical data, never lose data when power supply drop.
6, the whole universal input isolation, there are many kinds of signal input, do not need to jump line, through software configuration;
7, display of quantities numerical range wide, five numerical display: - 9999 ~ 19999;
8, vacuum science and counting display;
9, curve display can free combination, custom curve color;
10, curve chart way can set a vertical or horizontal;
11, Chinese menu configuration, display engineering, engineering unit.Software combination lock to assure the safety of the user configuration;
12, built-in gb secondary character (6500 Chinese characters), using the T6 pinyin input method, free enter a number and the unit;
13, alarm display, at the same time indicating each channel of the lower limit on ceiling, floor, ceiling, report to the police.Article 15 the alarm information can record zui nearly.
14, the use of USB interface archive and backup history, support 128 m, 256 m and 512 m USB flash drive;
15, standard serial communication interface: RS - 485 and RS - 232 - c;
16, 10 m Ethernet standard RJ45 interface;
17, the standard Modbus TRU communication protocol, in addition to support the company ScanX data management software, also supports ifixes, kingview, the MCGS, PCAuto popular professional configuration software, such as proprietary drivers.
18, micro printer can be an external support manual printing, timing, automatic printing, meet the needs of the user on-site printing;
19, integrated hardware real-time clock, useing case the clock will run accurate;
20, the new type of switching power supply, 85 vac - 265 vac within the scope of work;
21, provides the transmitter + 24 VDC isolation power distribution;
22, metal shell, allowing the use under harsh environment.
Four, the technical parameters:
Display: 5.1 -inch 160 x128 lattice blue graphic LCD display, LED backlight;
Basic error: plus or minus 0.5% FS.
Input specification: full isolation universal input: 1 ~ 16 channels signal input, channel is completely isolated, isolation voltage 1000 v:
1, the standard signal: 0 ~ 10 ma DC, 0 ~ 5 v DC, 1 ~ 5 v DC, 4 ~ 20 ma DC;
2, thermocouple: WR25, type B, E, J, K, S, T, R type;
3, heat resistance, Pt100, Cu50;
4, customized according to user requirements.
Relay output output specifications: zui 8 more road, 250 vac 3 a, 30 VDC 3 a, the default value is normally open contacts;
Cumulative range: 0 ~ 4294967295;
Communication, printing, communication interface: RS232C or RS485;
Baud rate: 1200, 2400, 9600, 19200.
Print interface: direct connection RS232C serial micro printer;
Record time: 1 seconds to 300 seconds set arbitrary time intervals;
Record time (days) = 96 x interval/channel number;
Data backup and archiving: USB interface;
The thermocouple cold junction compensation error: < plus or minus 0.5 ℃;
Power-off protection: built-in FLASH memory, the protection parameters and historical data;
Power supply: 170 ~ 264 avc, 50 hz + / - 5%;
Ambient temperature: 0 ~ 50 ℃;
Environmental humidity: 0 ~ 85% RH.
Five, the selection table:

After-sales service commitment:
1, our company sold by weiThe paperless recorder seriesProduct quality problem within 12 months, responsible for free maintenance.
2, the warranty period, any quality problems such as the products of our company, my company is responsible for free repair or replacement.
3, the warranty period, such as user improper use, damaged products, my company is responsible for the maintenance, charge damage parts cost.
4, after the warranty period appear quality problem, my company is responsible for the maintenance, charge damage parts cost.
5, such as user need to my company site services, to users in the province I company service personnel to reach the site within 12 hours, fujian association of foreign languages and user reach the site within 48 hours.
